Lisle, IL – CTS Corporation (NYSE: CTS) announces performance updates to its standard-grade crystal resonator product portfolio. The updates include the release of a new crystal model and performance upgrades to previously released models, all designed for general application use.
伊利諾伊州萊爾 – CTS 公司（紐約證券交易所代碼：CTS）宣布對其標準級石英晶體諧振器產品組合進行性能更新。更新包括新晶體模型的發布和對先前發布的模型的性能升級，所有這些都是為一般應用程序使用而設計的。CTS晶振發布優化了高性能的晶體諧振器435F24M22DVT

The release of the new crystal Model 435 adds to the CTS portfolio a RoHS 6/6 [lead-free], seam-weld,  2-pad ceramic package in the 5.0mmx 3.2mm size.  This is an ideal replacement for comparable glass-seal packages that contain lead [Pb] in the glass frit used during the cover sealing process.  The Model 435 is also an alternative solution to support existing designs that utilize two legacy crystal packages that may be obsolete or slated for obsolescence; the 4-lead plastic small outline J-lead package [4-SOJ] and the 4-pad HC-49/US-SM metal can configuration. See CTS technical brief Alternate Solution for EOL Crystal Packages for specific details on using the CTS 435 package as a substitution for common industry-glass seal models:  Alternate Solution for EOL Crystal Packages.
新石英晶體型號435 的發布為 CTS 產品組合增加了 5.0mmx 3.2mm 尺寸的 RoHS 6/6 [無鉛]、縫焊、2 焊盤陶瓷封裝。這是在蓋密封過程中使用的玻璃粉中含有鉛 [Pb] 的同類玻璃密封封裝的理想替代品。435型也是支持現有設計的替代解決方案，這些設計利用兩個可能已過時或計劃過時的傳統晶體封裝；4 引腳塑料小外形 J 引腳封裝 [4-SOJ] 和 4 焊盤 HC-49/US-SM 金屬罐配置。CTS晶振發布優化了高性能的晶體諧振器435F24M22DVT

Performance upgrades apply to models 416, 402, 425, 403, and 405. These include expanded frequency range, new temperature option of -40°C to +105°C, lower load capacitance choice, and the addition of common frequency tables.
性能升級適用于 416、402、425、403 和 405 型號。其中包括擴展的頻率范圍、-40°C 至 +105°C 的新溫度選項、更低的負載電容選擇以及添加常用頻率表。
Standard product features and common market applications for Model 435 are summarized below. Please refer to individual data sheets on our website to view more performance characteristics for all models cited in this release.
CTS晶振公司推出的435型的標準產品特性和常見市場應用總結如下。

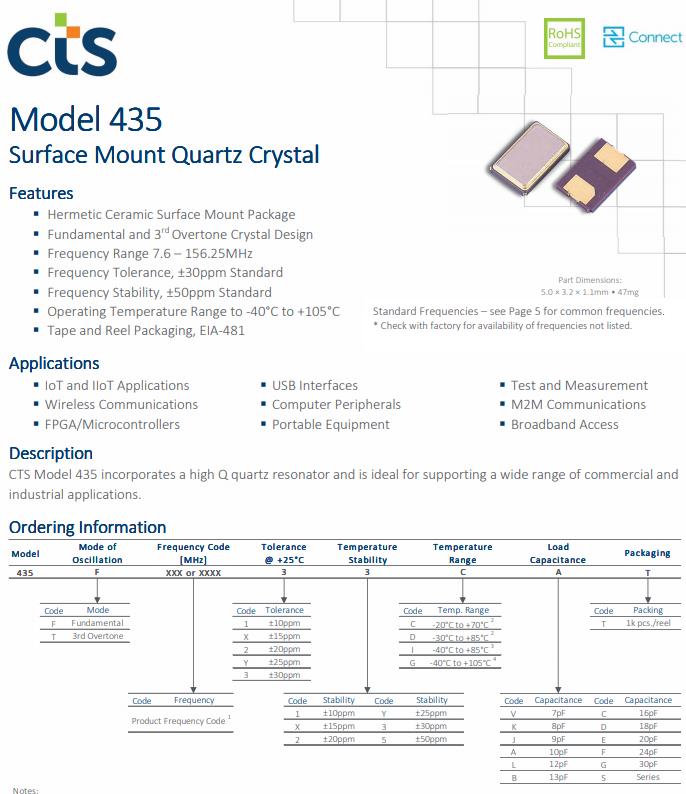

Model 435 Product Features:
435型產品特點：
Product Features
產品特點
5.0mmx3.2mm 2-Pad Ceramic Package
Stability Options – ±10ppm to ±50ppm
Temperature Range to -40°C to +105°
Fundamental or 3rd Overtone Crystal
RoHS 6/6 – Lead-Free
Tape and Reel Packaging
功能特性
密封陶瓷表面安裝包
基本和第三泛音水晶設計
頻率范圍7.6 - 156.25MHz
頻率公差，±30ppm標準
頻率穩定性，±50ppm標準
工作溫度范圍-40°C ~ +105°C
卷帶包裝，EIA-481
應用程序應用
物聯網和工業物聯網應用
無線通信
FPGA /微控制器
USB接口
電腦外圍設備
便攜式設備
測試和測量
M2M通信
寬帶接入
描述描述
CTS 435型集成了高Q石英諧振器，是支持廣泛的商業和工業應用。
