首頁進口晶振愛普生晶振X1G004171001900 SG21STF 2520 12.288MHZ 15PF 50PPM -40+85 EPSON

X1G004171001900 SG21STF 2520 12.288MHZ 15PF 50PPM -40+85 EPSON

產品型號：51735007
頻率：4MHZ-72MHZ
尺寸：2.5mmX2.0mm
產品介紹：愛普生晶振Frequency 12.288000MHZ 輸出WaveCMOS 電源電壓1.62 ~ 3.63 V 尺寸(長寬高)2.50 x 2.00 x 0.80毫米工作溫度-40至+85°C頻率公差±50 ppm 額外的O...

愛普生晶振Frequency 12.288000MHZ

輸出WaveCMOS

電源電壓1.62 ~ 3.63 V

尺寸(長寬高)2.50 x 2.00 x 0.80毫米

工作溫度-40至+85°C頻率公差±50 ppm

額外的OptionsN /

OSC類型鎖定OSC

安裝排版表面安裝

型號名稱項目名稱use SG-210STF

電流消耗1.8 mA

頻率老化1+/-3ppm

頻率老化2N/A

對稱性:45%到55%

FunctionST
X1G004171001900 SG21STF 2520 12.288MHZ 15PF 50PPM -40+85 EPSON SG-210STF12.2880ML5晶振,SG-210STF12.2880ML3有源晶振

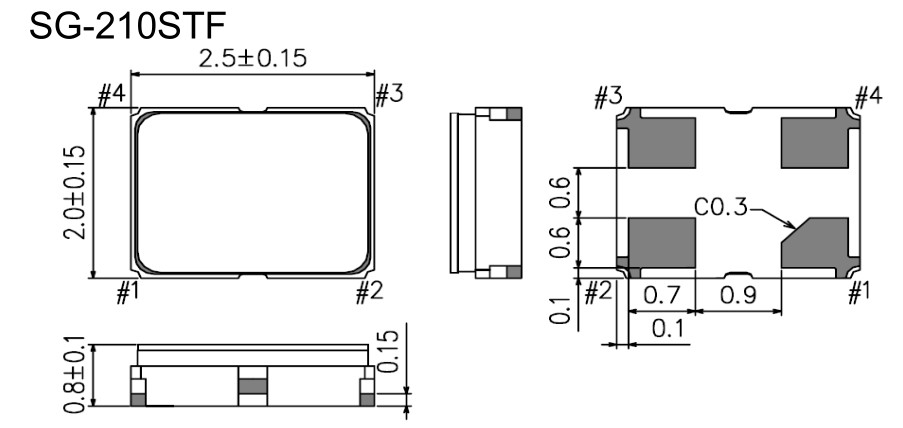

包裝尺寸(2.5 mm × 2.0 mm × 0.8 mm)

·基本模式SPXO OSC晶振

·輸出:CMOS

·參考重量類型:14 mg

X1G0041710019xx

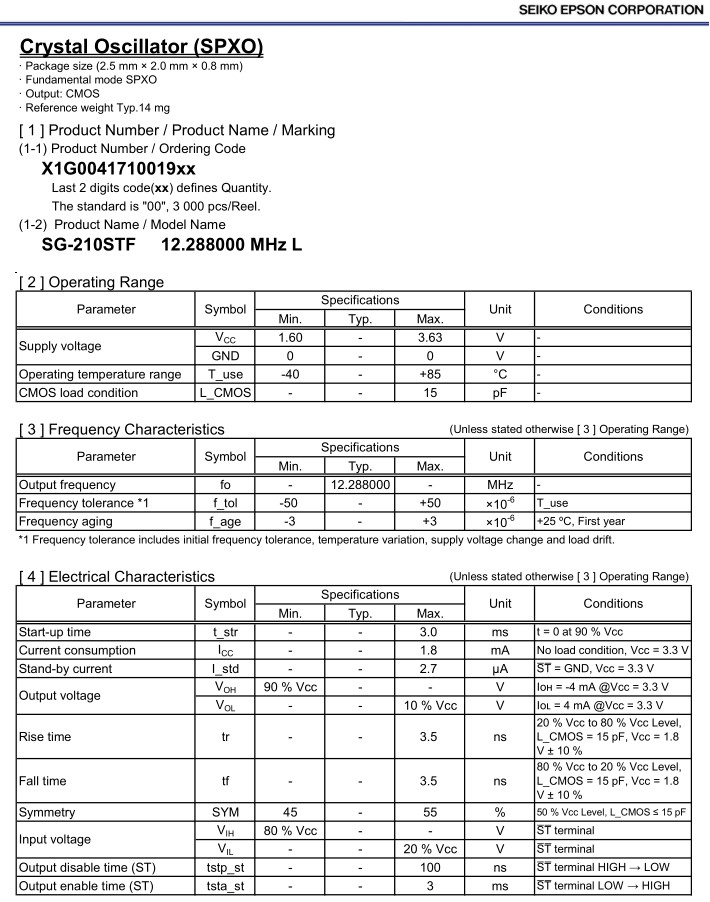

[1]產品編號/產品名稱/標志

(1-1)產品編號/訂購代碼

X1G0041710019xx

最后兩位數代碼(xx)定義數量。

標準為“00”，3000支/卷。

(1-2)產品名稱/型號名稱

SG-210STF 12.288000 MHz
X1G004171001900 SG21STF 2520 12.288MHZ 15PF 50PPM -40+85 EPSON SG-210STF12.2880ML5晶振,SG-210STF12.2880ML3有源晶振

[2]使用范圍

最低Typ。Max。

V cc 1.60 - 3.63 V -

GND 0 - 0 v -

工作溫度范圍T_use -40 - +85°C -

CMOS負載狀態L_CMOS - - 15pf -

[3]頻率特性

(除非另有說明[3]工作范圍)

最低Typ。Max。

輸出頻率- 12.288000 - MHz -

頻率公差*1 f_tol -50 - +50

×10 - 6

T_use

頻率老化f_age -3 - +3

×10 - 6

+25ºC，第一年

*1頻率公差包括初始頻率公差、溫度變化、電源電壓變化和負載漂移。

[4]有源貼片晶振電學特性

(除非另有說明[3]工作范圍)

最低Typ。Max。

啟動時間t_str - - 3.0 ms t = 0在90% Vcc

電流消耗I CC - - 1.8 mA空載狀態，Vcc = 3.3 V

待機電流I_std - - 2.7 μA S′T′= GND, Vcc = 3.3 V

voh 90% Vcc - - vio = - 4ma @Vcc = 3.3 V

vol - - 10% Vcc V Io _ = 4 mA @Vcc = 3.3 V

上升時間tr - - 3.5 ns

20% Vcc至80% Vcc水平

L_CMOS = 15 pF, Vcc = 1.8

V±10%

下降時間- 3.5 ns

80% Vcc至20% Vcc水平

L_CMOS = 15 pF, Vcc = 1.8

V±10%

對稱性SYM 45 - 55% 50% Vcc電平，L_CMOS≤15pf

vih 80% Vcc - - vs_ T _終端

vil - - 20% Vcc V S _ T _終端

輸出禁用時間(ST) tstp_st - - 100 ns S′T′終端HIGH→LOW

輸出使能時間(ST) tsta_st - - 3ms S′T′終端LOW→HIGH
X1G004171001900 SG21STF 2520 12.288MHZ 15PF 50PPM -40+85 EPSON SG-210STF12.2880ML5晶振,SG-210STF12.2880ML3有源晶振

[有關其他規格參數請參閱下面所附的完整數據表]

晶體振蕩器(SPXO)

●頻率:20個標準頻率

(4 MHz至72 MHz)

●輸出:CMOS

●電源電壓:1.6 V ~ 3.63 V

●工作溫度:-20℃~ +70℃

-40℃~ +105℃

石英晶體振蕩器應用程序

●物聯網、可穿戴設備

●數據中心、存儲

●醫療、工業自動化

描述

愛普生的SGxxxxCAN和SG-210STF是具有CMOS輸出的簡單封裝晶體振蕩器(SPXO)系列。

這些SPXO是物聯網，可穿戴設備，醫療，工業自動化等各種應用的理想選擇。

這些SPXO具有低電流消耗，寬工作電壓從1.6 V到3.63
X1G004171001900 SG21STF 2520 12.288MHZ 15PF 50PPM -40+85 EPSON SG-210STF12.2880ML5晶振,SG-210STF12.2880ML3有源晶振

深圳市壹兆電子科技有限公司
聯系人：龔成

電話：0755--27876236
QQ：769468702
手機：13590198504
郵箱:zhaoxiandz@163.com
網站:http://www.qhsd888.com.cn/

X1G004171001900 SG21STF 2520 12.288MHZ 15PF 50PPM -40+85 EPSON SG-210STF12.2880ML5晶振,SG-210STF12.2880ML3有源晶振

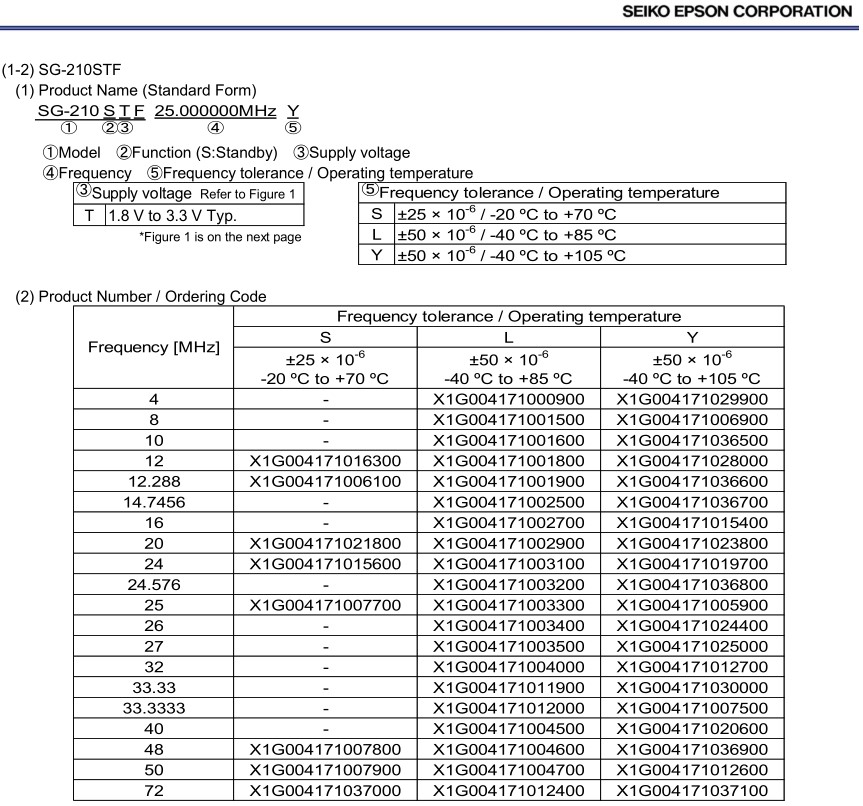

有源晶振編碼	晶振型號	晶振頻率	晶振尺寸	晶振輸出	晶振溫度	晶振精度
X1G0041710002	SG-210STF	33.300000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710005	SG-210STF	1.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710006	SG-210STF	1.843200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710007	SG-210STF	2.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710008	SG-210STF	3.686400 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710009	SG-210STF	4.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710010	SG-210STF	4.096000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710011	SG-210STF	5.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710012	SG-210STF	6.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710013	SG-210STF	6.144000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710014	SG-210STF	7.372800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710015	SG-210STF	8.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710016	SG-210STF	10.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710017	SG-210STF	11.289600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710018	SG-210STF	12.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710019	SG-210STF	12.288000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710020	SG-210STF	12.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710021	SG-210STF	13.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710022	SG-210STF	13.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710023	SG-210STF	13.560000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710024	SG-210STF	14.318180 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710025	SG-210STF	14.745600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710026	SG-210STF	15.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710027	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710028	SG-210STF	19.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710029	SG-210STF	20.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710030	SG-210STF	22.579200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710031	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710032	SG-210STF	24.576000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710033	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710034	SG-210STF	26.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710035	SG-210STF	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710036	SG-210STF	27.120000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710037	SG-210STF	28.636360 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710038	SG-210STF	29.491200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710039	SG-210STF	30.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710040	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710041	SG-210STF	33.333000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710042	SG-210STF	36.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710043	SG-210STF	37.400000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710044	SG-210STF	38.400000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710045	SG-210STF	40.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710046	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710047	SG-210STF	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710048	SG-210STF	52.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710049	SG-210STF	54.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710052	SG-210STF	8.192000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710055	SG-210STF	26.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710059	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710069	SG-210STF	8.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710075	SG-210STF	33.333300 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710077	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710078	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710079	SG-210STF	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710080	SG-210STF	66.666700 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710081	SG-210STF	75.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710083	SG-210STF	1.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710084	SG-210STF	1.228800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710085	SG-210STF	1.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710086	SG-210STF	1.536000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710087	SG-210STF	2.048000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710088	SG-210STF	2.457600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710089	SG-210STF	2.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710090	SG-210STF	3.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710091	SG-210STF	3.072000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710092	SG-210STF	3.125000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710093	SG-210STF	3.579545 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710094	SG-210STF	4.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710095	SG-210STF	4.800000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710096	SG-210STF	4.915200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710097	SG-210STF	5.644800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710098	SG-210STF	6.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710099	SG-210STF	6.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710100	SG-210STF	6.750000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710101	SG-210STF	6.780000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710102	SG-210STF	7.159090 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710103	SG-210STF	7.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710104	SG-210STF	8.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710105	SG-210STF	9.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710106	SG-210STF	9.600000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710107	SG-210STF	9.830400 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710108	SG-210STF	15.625000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710109	SG-210STF	16.384000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710110	SG-210STF	16.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710111	SG-210STF	16.650000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710112	SG-210STF	16.666500 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710113	SG-210STF	18.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710114	SG-210STF	19.440000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710115	SG-210STF	19.660800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710116	SG-210STF	31.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710117	SG-210STF	32.768000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710118	SG-210STF	33.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710119	SG-210STF	33.330000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710120	SG-210STF	33.333300 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710121	SG-210STF	62.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710122	SG-210STF	66.667000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710124	SG-210STF	72.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710125	SG-210STF	74.176000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710126	SG-210STF	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710127	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710128	SG-210STF	4.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-100 ppm
X1G0041710136	SG-210STF	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710140	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710141	SG-210STF	13.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710144	SG-210STF	33.330000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710146	SG-210STF	6.780000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710147	SG-210STF	13.560000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710151	SG-210STF	66.670000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710152	SG-210STF	27.120000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710153	SG-210STF	1.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710154	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710155	SG-210STF	8.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-100 ppm
X1G0041710156	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710159	SG-210STF	9.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710162	SG-210STF	10.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710163	SG-210STF	12.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710164	SG-210STF	14.318000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710165	SG-210STF	14.318000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710188	SG-210STF	37.125000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710189	SG-210STF	74.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710192	SG-210STF	54.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710193	SG-210STF	74.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710195	SG-210STF	48.896000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710196	SG-210STF	66.660000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710197	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710198	SG-210STF	16.384000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710199	SG-210STF	66.666700 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710201	SG-210STF	48.896000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710202	SG-210STF	33.333333 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710203	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710204	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-100 ppm
X1G0041710205	SG-210STF	22.579200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710206	SG-210STF	40.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710209	SG-210STF	2.400000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710220	SG-210STF	33.333333 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710221	SG-210STF	66.666600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710222	SG-210STF	66.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710223	SG-210STF	7.680000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710225	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710226	SG-210STF	28.636300 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710227	SG-210STF	19.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710228	SG-210STF	45.158400 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710229	SG-210STF	30.720000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710232	SG-210STF	66.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710238	SG-210STF	20.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710239	SG-210STF	75.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710241	SG-210STF	25.006250 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710242	SG-210STF	32.768000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710244	SG-210STF	26.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710245	SG-210STF	24.576000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710250	SG-210STF	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710251	SG-210STF	66.666600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710252	SG-210STF	60.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710253	SG-210STF	16.384000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710254	SG-210STF	15.360000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710256	SG-210STF	13.333300 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710257	SG-210STF	30.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710262	SG-210STF	37.125000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710263	SG-210STF	18.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710264	SG-210STF	12.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm
X1G0041710266	SG-210STF	1.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-100 ppm
X1G0041710268	SG-210STF	2.048000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-100 ppm
X1G0041710269	SG-210STF	4.096000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710278	SG-210STF	13.330000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710279	SG-210STF	15.360000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710280	SG-210STF	12.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710281	SG-210STF	33.333000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710282	SG-210STF	36.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 105 °C	+/-50 ppm
X1G0041710283	SG-210STF	45.158000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-20 to 70 °C	+/-25 ppm

歡迎光臨：壹兆電子有限公司

晶振分類

常見問題

X1G004171001900 SG21STF 2520 12.288MHZ 15PF 50PPM -40+85 EPSON

相關產品

壹兆客服
